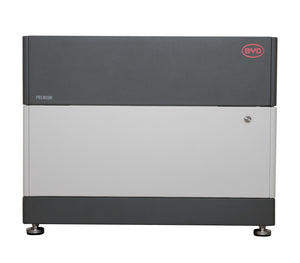

BYD Battery-Box Premium LVS 4.0
BYD Battery-Box Premium LVS 4.0
Battery Module: LVS (4 kWh, 51.2 V, 45 kg)
Number of Modules: 1
Usable Energy: [1] 4 kWh
Max Cont. Output Current: [2] 65 A
Peak Output Current: [2] 90 A, 5 s
Dimensions: (H/W/D) 528 x 650 x 298 mm
Weight: 64 kg
Nominal Voltage: 51.2 V
Operating Voltage: 40-57.6 V
Operating Temperature: -10 °C to +50°C
Battery Cell Technology: Lithium Iron Phosphate (cobalt-free)
Communication: CAN / RS485
Enclosure Protection Rating: IP55
Round-Trip Efficiency: ≥95%
Scalability: [3] Max. 64 Modules in Parallel (256 kWh)
Certification: VDE2510-50 / IEC62619 / CE / CEC / UN38.3
Applications: ON Grid / ON Grid + Backup / OFF Grid
Warranty: [4] 10 Years
[1] DC Usable Energy, Test conditions: 100% DOD, 0.2C charge & discharge at + 25 °C. System Usable Energy may vary with different inverter brands
[2] Charge derating will occur between -10 °C and +5 °C
[3] Parallel tower function only available for 1 to 4 battery modules per tower. LVS 20.0 and LVS 24.0 can only be used as a single tower.
[4] Conditions apply. Refer to BYD Battery-Box Premium Limited Warranty Letter.
