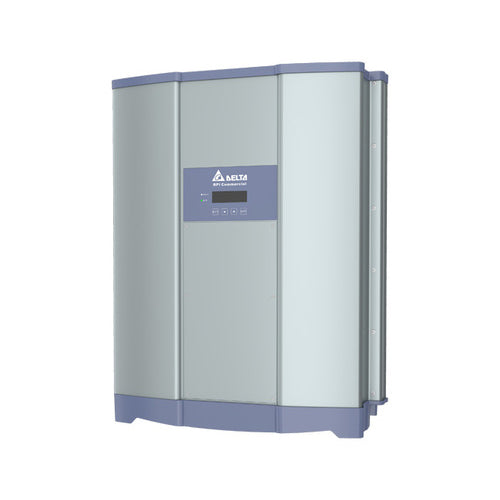

Delta RPI M50A-12S
Delta RPI M50A-12S
In Stock
Model name: RPI M50A
Part numbers Delta: RPI M50A_12s Model: RPI503M221000
Delta RPI M50_12s model has integrated AC & DC-side Type II SPD
Maximum profitability and versatility
The M50A Inverter has a peak efficiency of 98.6 % and has built-in and replaceable AC and DC-side Type II SPDs (surge protection devices) and 15 A string fuses. 2 MPP trackers are featured with symmetrical and asymmetrical loading possible (40/60 %) as well as a wide input voltage range from 200 – 1100 V.
Extraordinary power density and durability
The M50A offers an exceptional power density-to-size ratio, one of the highest in the 50 kVA transformerless inverter class. The aluminium housing ensures long lasting protection against moisture and corrosion and is suitable for indoor and outdoor applications (IP65).
Simple Installation
The lightweight and compact design of the RPI M50A greatly simplifies installation. The inverters include a unique wall mount bracket in the scope of delivery, allowing the units to be easily installed on a variety of wall surfaces.
